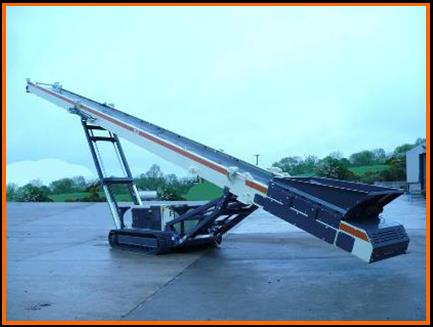

Sheffield MS842W Mobile Conveyor

· Crawler Track Movement

· Hydraulic or Electric Drive

· 1050mm (42") Wide Belt

· O/A Length 20Mtrs (65 Ft)

· 38KW Power Unit

· Hydraulic Raise & Lower

· Handling Capacity 400 Tonne / Hour

Stockpile Capacity 1216 Metric Tonne (760 Cubic Meter)

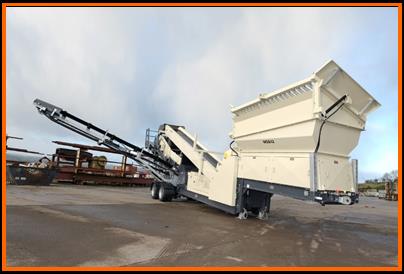

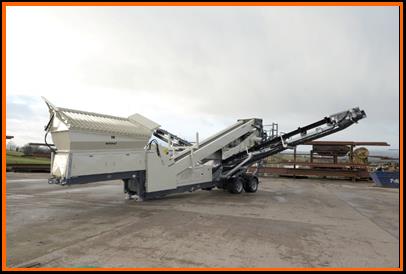

Sheffield MS842W Mobile Screen

Heavy Duty Construction

The heavier construction, demonstrated in the 30,404 lb. (13.820 kg) weight of the MS842, provides for increase durability while allowing the MS842 the ability to withstand the rigors of heavy applications.



8' x 4' (2.4 m x 1.2 m) 4-Bearing Screen

The unique end to end crowning of the 8' x 4' (2,4 m x 1,2 m) MS842W screen box allows for higher production and more efficient separation than similarly sized flat screens.



On-Board Stockpiling Wing Conveyors

The on-board stockpiling conveyors allow for fast set up times by eliminating the need for off plant stacking conveyors. The self cleaning wing conveyors have a folding mechanism that provides a compact profile for transport while providing a stockpile height of 14'3" (4,3 m).



Wing Conveyor Variable Speed Drive

The top screen deck wing conveyor hydraulic system allows the user to adjust the speed of the conveyor to control rollback of material providing for a safer and more efficient operation.



On-Board Product Conveyor

The folding mechanism of the on-board product conveyor allows for fast set up. It also provides a compact profile for transport, added strength, and a stockpile height of 3.8 m (12'6").



Maintenance Platform

The maintenance platform on the MS842W extends across the rear portion of the screen and provides easy access to the screen panels for screen mesh replacement. Ladders with handrails are installed on both sides of the MS842 for access to the maintenance platform and to the remote screen bearing lubrication points.
