HOPSTEIN FARMING EQUIPMENT
For more info please refer to the main tractor website:
Our main objective is to provide the local and rural farmer with all farming requirements at an affordable, yet effective way.
All spares are readily available, including the infrastructure to repair all products sold with exceptional service guaranteed. Below is A condensed list of products and implements we can supply i.e. Generators Mounted irrigation systems Rotovators 4 Row seed planters 6 Row seed planters 1,2m Slasher mower Trailer Brick Making Machines 4 – Wheel tractors 30hp 4x2 and 4x4 Hammer Mills Diesel Engines “AgriHop”. o 12Hp - 15 Hp - 20-Hp Electric Centrifugal pumps. De – Watering pump. Cannon & Tripod PY1 – 40 Trailer mounted Pumps. Generator / welder single phase A.C. Service and repairs. Training on the use of the equipment supplied. Full range of Spares.
Below are various applications of the Agrihop Tractor, including the specifications of all the farming implements that can be used when farming.
2-WHEEL TRACTORS Use in a walk-behind or ride-on manner. Incredibly versatile, with a large range of interchangeable implements. Driven by the 12 hp diesel engine. 8 gears, 6 forward and 2 reverse. Top speed of 17 km/h. PTO is via three V-belts. The tractor can be used with a range of implements, many of which are featured below. It can pull a 2,5 ton capacity trailer.
IMPLEMENTS Single-share plough, can plough over a hectare per day. Single-share plough. Plough can be raised and lowered to adjust depth and facilitate travel to and from the field of work. Plough is turnaround type and one walks behind the tractor (the steal wheels are advisable for ploughing).
Powered disc plough is a unique item of equipment and is driven directly from the tractor gearbox. Perfect for use in lighter sandy soils. This plough has a third wheel and seat and can thus be used in ride-on or walk-behind functions. Three discs rotate at approximately 100 r/min angled at 15º off the centre line of the tractor. Tilling can be carried out at a brisk 10 km/h. Plough to a depth of 210 mm. The final effect is an even, billiard-table finish. Ideal for preparation prior to planting or for tilling in between vines or orchard trees.
Double-share walk-behind plough, ideal for small kitchen gardens or for awkward or small areas. Extremely manoeuvrable. Available in 2-disc or 2-share form.
Diamond harrow, has 20 tines and attaches to the tool bar. It is a well-known, tried and tested implement used throughout Africa. Working width of 900 mm.
Cultivator, has 5 S-tines and attaches to the tool bar. It is a used for weeding in between crops. Working width of 900 mm.

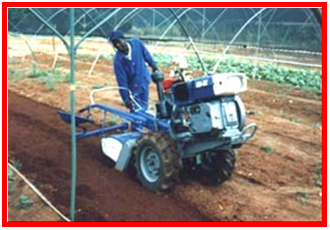

Rotovator, has a third wheel and seat and can thus be used in ride-on or walk-behind functions. Rotovation depths of up to 220 mm. Rotovation width of up to 600 mm. Speeds for rotovation from 1 to 12 km/h. Two types of tine: 'chisel' for stony soils and the curved tine for more freshly turned soil. Ideal for use in preparing seedbeds, especially in tunnels, or weeding between crops and in horse lunge arenas.

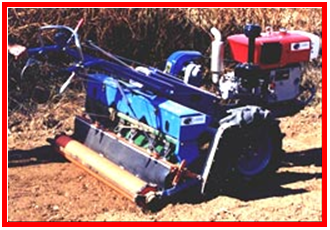

The 6-row planter Plants 1 - 6 rows over a total width of 1,2 m. Designed specifically for rice and wheat, but is equally effective at dispensing other small to medium-sized seed. Effective for sowing grass seed. Has a 48 x 100 mm tine rotovator for "fluffing up" the soil. Drills can plant seed to a depth of up to 60 mm. Lightweight roller seals the seedbed without compacting.

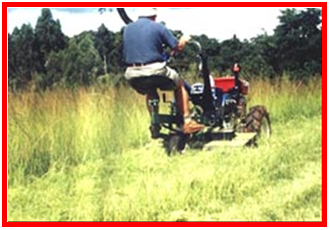

Slasher mower Twin bladed and can be used for cutting veld grass or for lawns and fairways. Extremely effective for cutting firebreaks, which presents good opportunities for entrepreneurs. It is both robust and powerful. 1,2 m width and the cut height can be varied from scarifying to 80 mm.

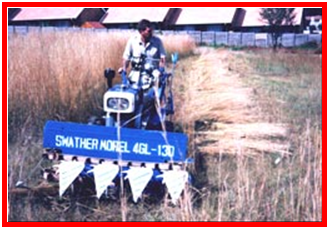

Harvester Specifically for cutting dry grasses such as wheat and rice. Sickle bar of 1,3 m. Cuts to a minimum stubble height of 60 cm. Forms windrows, which makes it ideal for harvesting grain crops such as wheat, barley and rice. Front mounted. Practical operating speed of 5 km/h.
Irrigation Irrigation pumps with capacities of 22m3/h at 40 m head and 30m3/h at 45 m head are available. They can be used in stationary or tractor-mounted applications. The great advantage of having a tractor-mounted pump is that it can be driven back to a secure facility after use. Pumps are equipped with recessed impeller and mechanical seal. Spray cannon and tripods are also shown above.

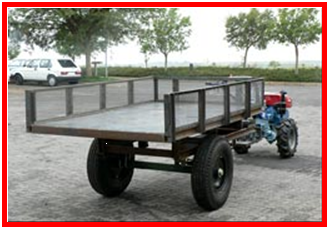

The 2,5 t tipper version is exactly the same design, but is equipped with a hydraulically operated tipping device.
Trailer

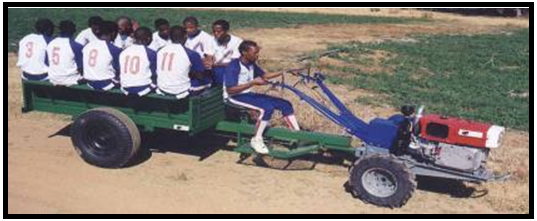

A 1 ton farm trailer can be attached to the tractor.
4-WHEEL TRACTORS 30 hp 4 x 2 and 4 x 4 TRACTORS 4-WHEEL TRACTOR IMPLEMENTS 4-wheel tractors have 3-point lifts and a standard 540 r/min PTO. Most conventional implements can be attached to the tractors. Some of the implements that are used are shown below, including the 2,5 and 4 ton rough-terrain trailers.
DOUBLE-SHARE PLOUGH Furrow width 200 mm Total working width 400 mm Ploughing depth 170 - 220 mm Field capacity 0,14 - 0,19 ha/h (at a speed of 4,4 - 6,0 km/h)
14-DISC HARROW Working width 1 300 mm Number of discs 12 Disc diameter 460 mm Mounting 3-point Overall dimensions 1590 x 1230 x 830 mm Weight 200 kg Maximum depth 100 - 140 mm Angle of disc gangs Front 0, 14, 17, 20 Rear 0, 17, 20, 23
ROTOVATOR Tilling width 1 100 mm Number of blades 20 or 24 Mounting 3-point Power required 11 - 15 kW PTO speed 540 r/min Tilling depth 120 - 200 mm Shaft speed 220 r/min Working speed 8 - 10 km/h Shaft turning radius 245 mm Overall dimensions 800 x 1 410 x 830mm
PLANTER Overall dimensions 1200 x 1800 x 900 mm Weight 185 kg Power required 11 - 15 kW Row width 540 mm Number of rows Up to 4 Maximum seeding width 2 160 mm Seeding depth 30 - 50 mm Cultivator Tractor Driven Maize Mill Hammer Mill
Rotovator Slasher Mower Pump Mounted On
4 Row Planter Agrihop
